Stainless Steel Door and Window Frame Sets

Architectural stainless work looks simple on a plan and is unforgiving in the shop: a door frame has to be square, the hinge line straight, the sheet panels flush and the welds hidden. We detailed four door and window sets for a bathroom fit-out so the fabricator could cut, weld and polish them straight from the drawings.

Australia SolidWorks

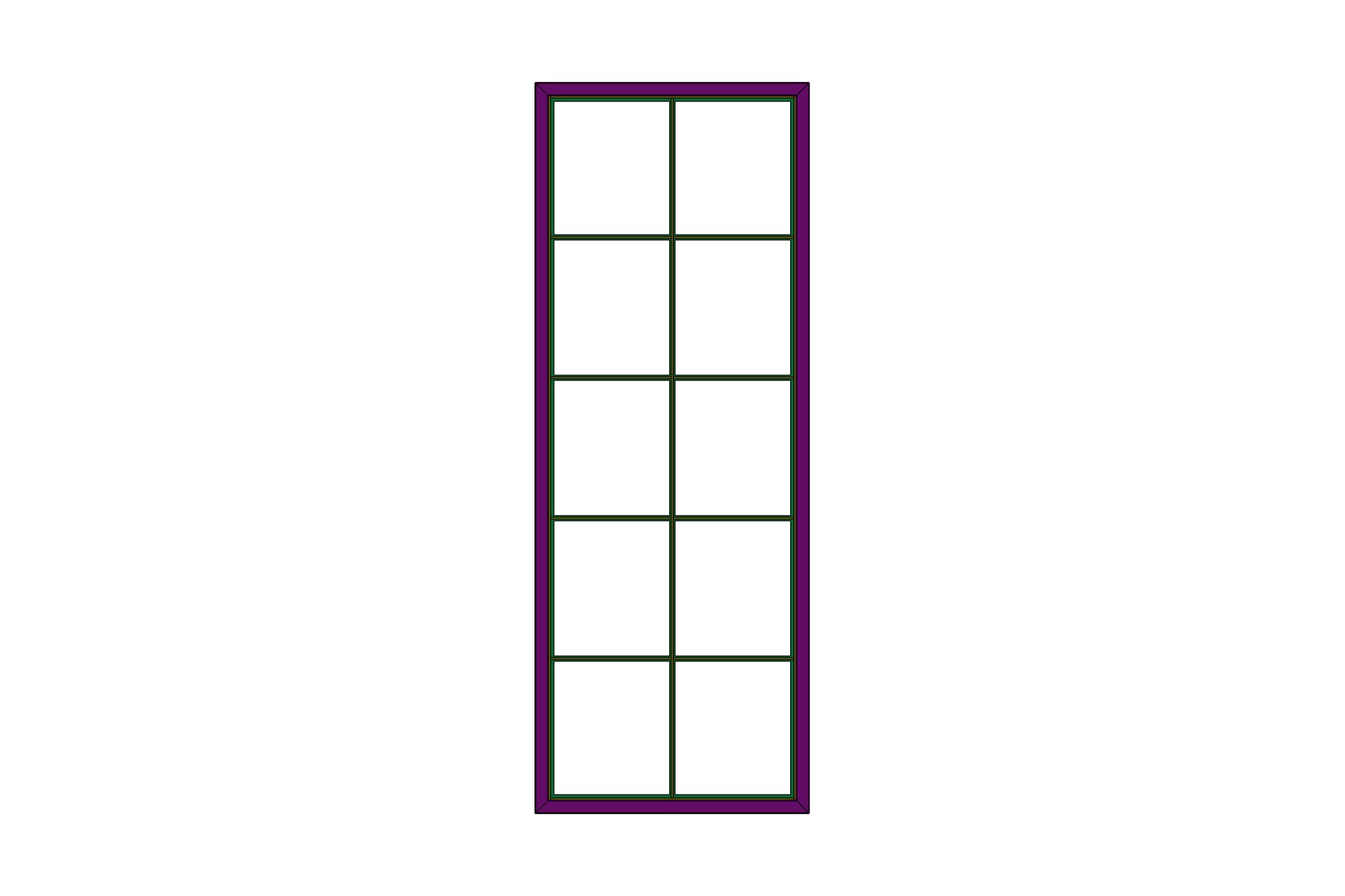

CAD model of a stainless steel door frame with square hollow section posts and divided panel infill
Client
Fabrication company, Australia (name withheld under NDA)
Platform
SolidWorks
Client region
Australia
Sets
Doors 2155 × 810 and 2205 × 850 LH/RH · windows 1305 × 745 and 510 × 745
Construction
40 × 40 SHS posts · 25 × 6 flat-bar frames · 2 mm stainless sheet · ball-bearing hinges
Package
32 drawings · inner and outer frames, flat bars, end caps, fabrication assemblies

The challenge

The brief arrived as site photographs and opening sizes. Each door and window had to be built as an outer frame fixed to the building and an inner frame carrying the sheet panels, with the two separated by a consistent gap and the hinges aligned so the door closes flush. Left- and right-hand versions of the larger door were needed.

Stainless sheet shows every weld and every bit of distortion, so the fabricator wanted the frames broken down into straight-cut flat bars and posts with the panel bays dimensioned individually — 392.8, 407.8 and 397.8 mm bays on the 2155 door — rather than one overall size.

Our approach

Each set was modelled as a fabrication assembly: outer frame, inner frames 1 and 2, flat bars 1 and 2 and the 2 mm sheet panels, with the 40 × 40 SHS vertical posts and end caps as separate parts. The LH and RH doors share every part except the hinge-side post, which keeps the cut list short.

The drawings give each frame as a welded assembly with an item list, then every flat bar and post as a cut length, and section A-A and detail B through the hinge line showing the 6.5 mm and 2 mm offsets that make the door sit flush. Ball-bearing hinges were positioned at 341 mm from each end so the hinge pattern is identical on both door sizes.

The whole package — 32 drawings across the four sets — was issued on the fabricator's A3 template with their standard tolerance table, so it sits beside their other jobs without a separate convention.

What was delivered

Four complete door and window fabrication packages, 32 drawings, with a shared parts system between the sizes. The fabricator built the frames from the cut lists and had the doors hung on the first visit to site.

  • SolidWorks assemblies for 4 door / window sets
  • 32 fabrication and part drawings
  • Cut lists for SHS posts and flat bars
  • Hinge-line sections and flush-fit details
  • STEP files for each set

Standards and conventions applied

  • Fabricator tolerance table (±0.25 to ±1.0 mm by size, ±0.5°)
  • AS 1100 third-angle drawing practice
  • AS/NZS 1554.6 stainless welding references on assembly sheets
