The challenge
The antenna supplier specified the mounting interface and the height; everything else — section sizes, bracing, base plate and anchor pattern — had to be decided and drawn quickly, and revised as the client's site constraints changed.
Our approach

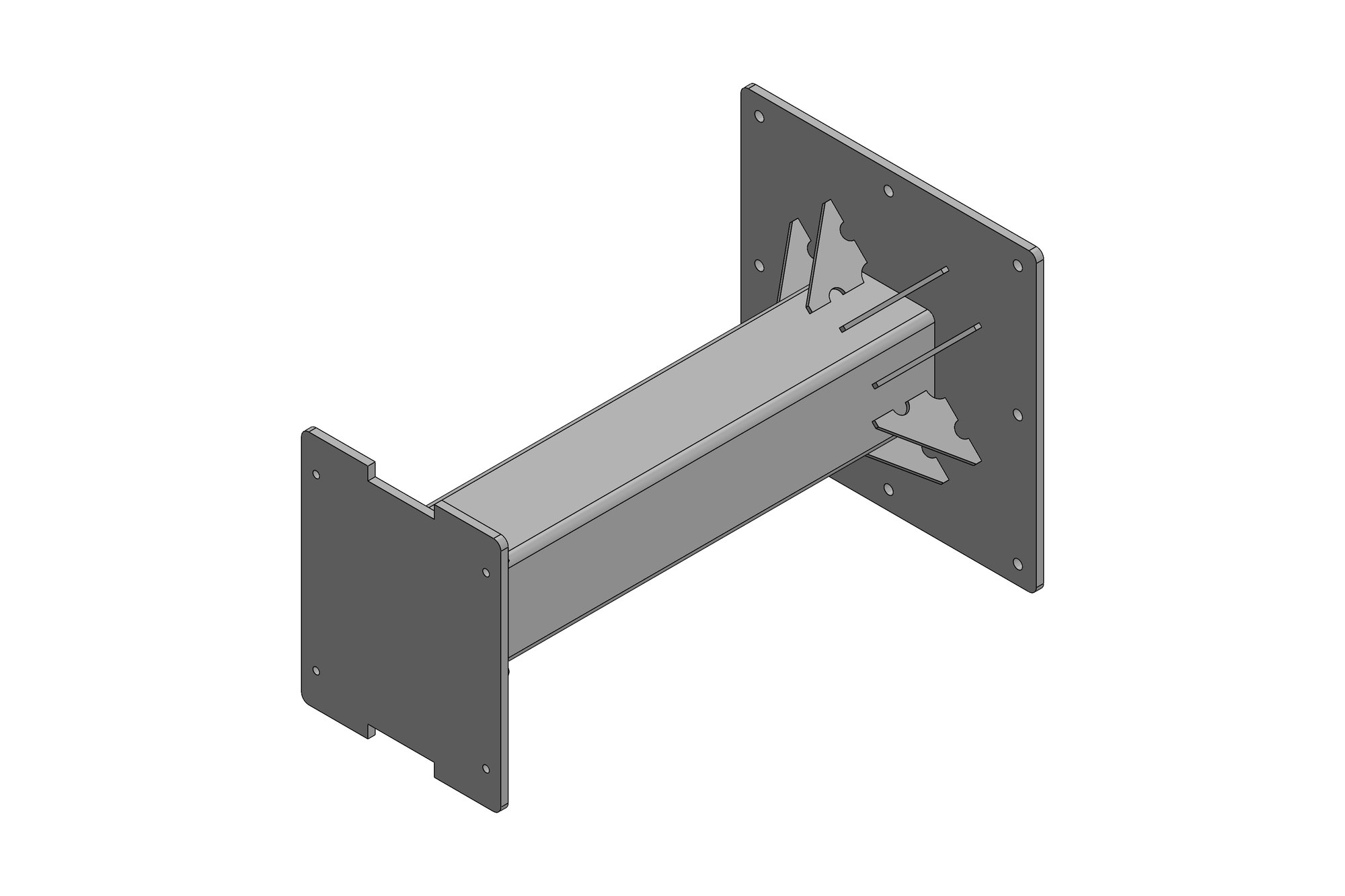

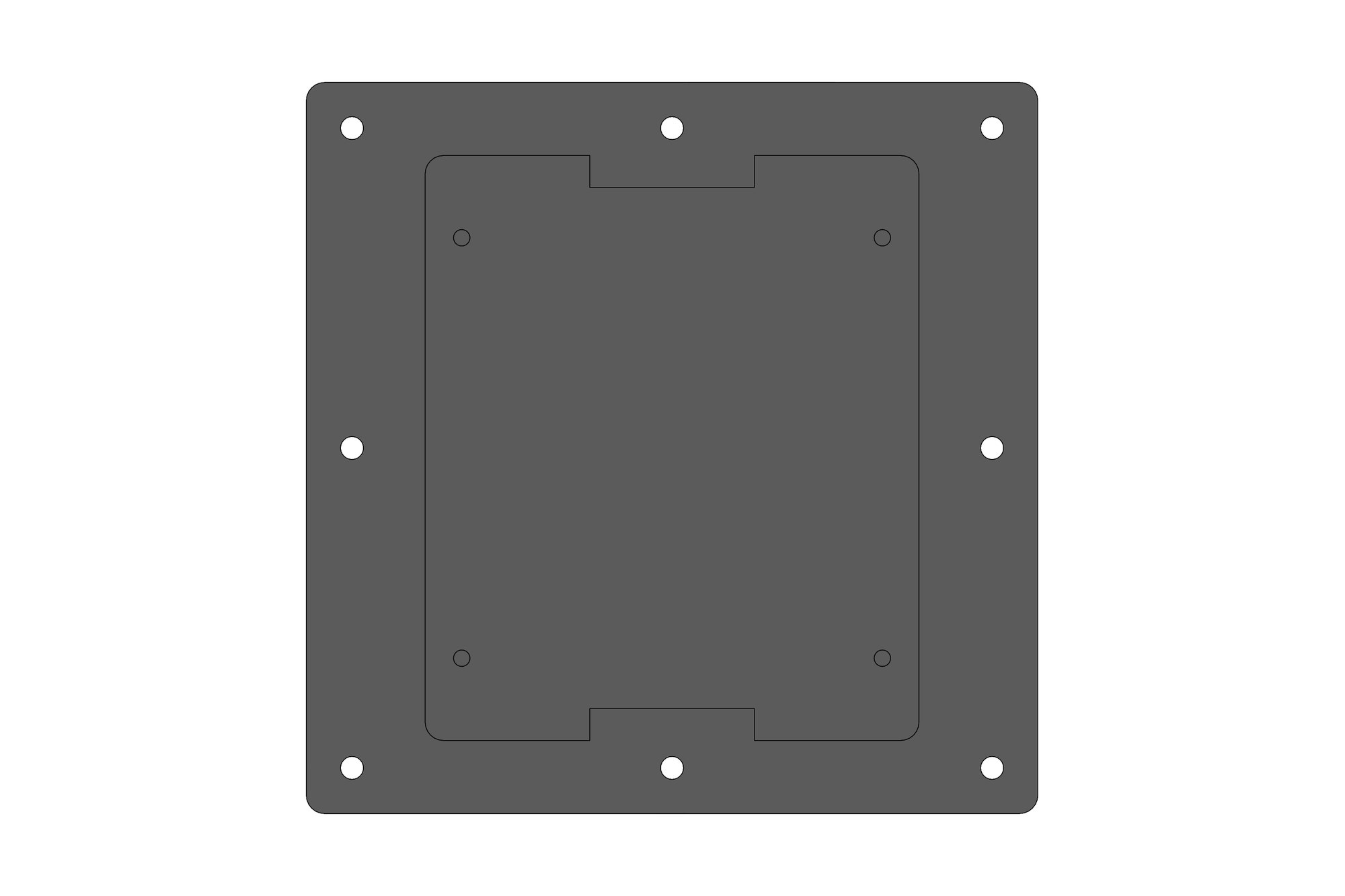

The stand was modelled as a SolidWorks weldment of standard sections with a machined top plate matching the antenna bolt pattern and a base plate with slotted anchor holes. Three iterations were issued as the height and bracing were adjusted, each as STEP and a PDF drawing with the cut list, so the fabricator always had the current version.
What was delivered
Stand-3 was released for fabrication with the weldment drawing and cut list; the client reused the model for a second site with a different base plate.
- SolidWorks weldment model
- Fabrication drawing with cut list
- STEP and PDF per iteration
Standards and conventions applied
- ISO 2553 weld symbols
- IS 800 structural detailing conventions
