Rotary Screen Printing Machine (1620 mm)

A rotary screen printing machine runs engraved cylindrical screens in register over a moving blanket; every head has its own drive, and the repeat gearboxes keep eight or more heads in step. We modelled the complete 1620 mm machine — heads, screen drives, repeat and remaining gearboxes, blanket drive and frames — and produced the drawing set that the OEM built from.

India Solid Edge AutoCAD
CAD model of a rotary screen textile printing machine with multiple print heads and drive side
Client
Textile printing machinery OEM, Gujarat (name withheld under NDA)
Platform
Solid Edge, AutoCAD
Client region
India
Printing width
1620 mm
Sub-assemblies
Repeat screen head drive side, last and remaining gearboxes, blanket drive
Verification
Photographs of the built machine against the model

The challenge

Register between heads is everything in rotary printing. The repeat gearboxes, screen drives and blanket drive must be modelled as one kinematic chain, and the frames must hold the head centres accurately over a machine many metres long. The OEM had a built machine and partial drawings, and needed a complete model to standardise production.

Our approach

The machine was modelled head by head in Solid Edge: each printing head as an assembly with screen bearing, squeegee system and lift, the drive side with the repeat screen head drive and the last and remaining gearbox assemblies, the blanket drive, and the main frames. Standard bearings and drive components were placed from the supplier libraries used by the OEM.

The model was checked against photographs of the built machine, and the drawing set — over 190 sheets — was produced in the OEM's format with assembly drawings, fabricated frame drawings and machined parts for the gearboxes and screen drives.

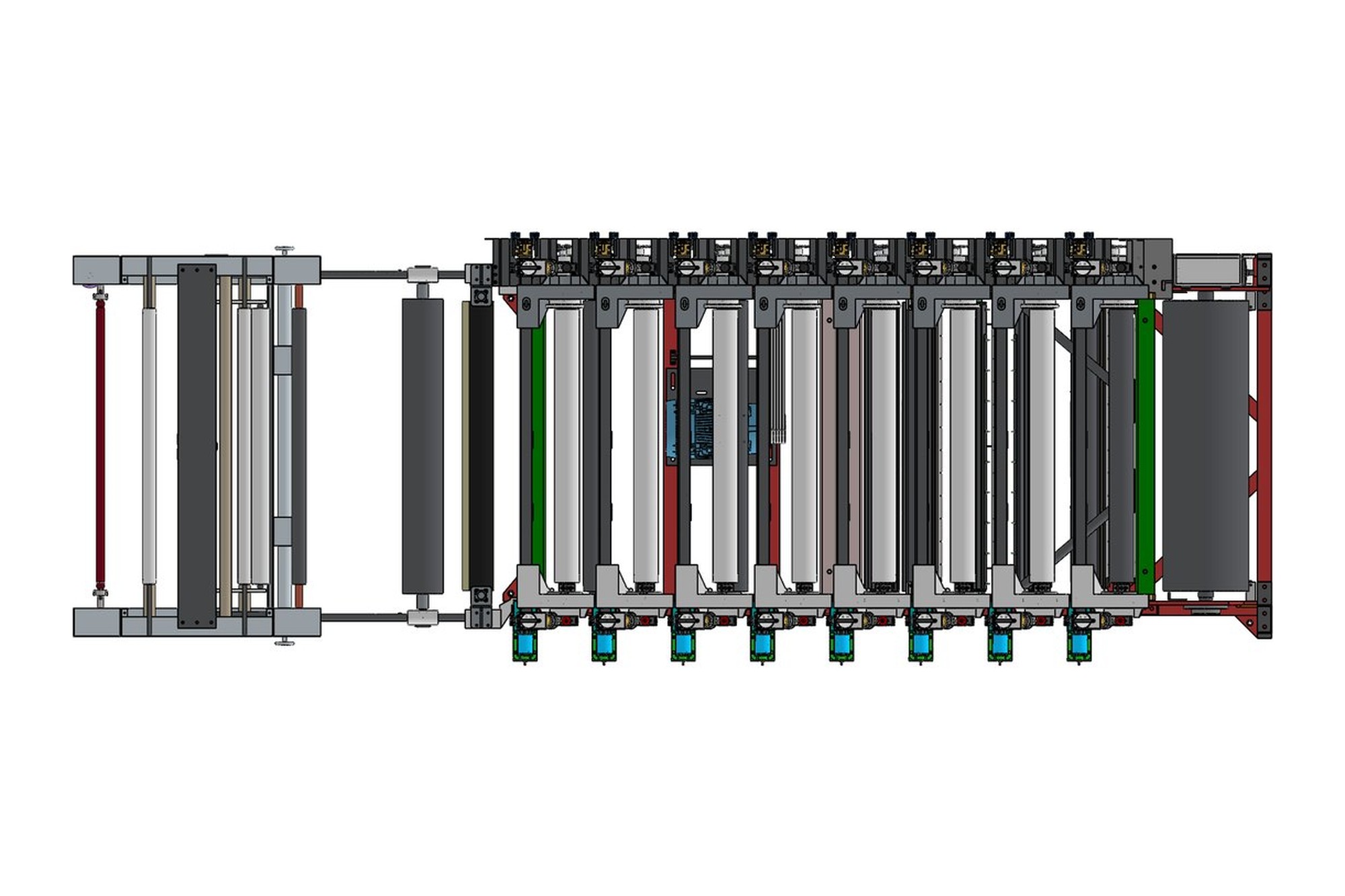

Rotary screen printing machine assembly Front elevation of the print heads

What was delivered

The OEM has a complete, verified model and drawing set for the 1620 mm machine; longer widths are derived by changing the head width and frame length in the same model.

  • Solid Edge assembly of the complete machine
  • Assembly and part drawing set (190+ sheets)
  • Gearbox and screen drive machining drawings
  • Frame fabrication drawings
  • STEP of the complete machine

Standards and conventions applied

  • OEM drawing template and tolerance table
  • ISO 2768 general tolerances
  • Gear data tables on repeat gearbox drawings

Have a similar requirement? Send the drawings, a sketch or a description — an engineer will scope it and reply with an itemised quote within one business day. Request an engineering quote.
